24V 36V 48V Ebike Controller Kit 500W Brushless Controller and LCD Display
24V 36V 48V Ebike Controller Kit 500W Brushless Controller and LCD Display
- 【Good Performance Brushless Motor Controller】The 48v ebike controller adopts good quality materials,features with brushless,have good hot dissipation,low noise,durable and strong,making the electric bicycle speed controller have long service life
- 【Sensitive Control and Good Protection System】The 500w ebike brushless motor speed controller can provide steady speed and sensitive control of braking and direction change,36v motor controller is very intelligent,possess various functions,brake power-off, undervoltage protection, overcurrent protection,Let motor performance continue well,batteries have longevity

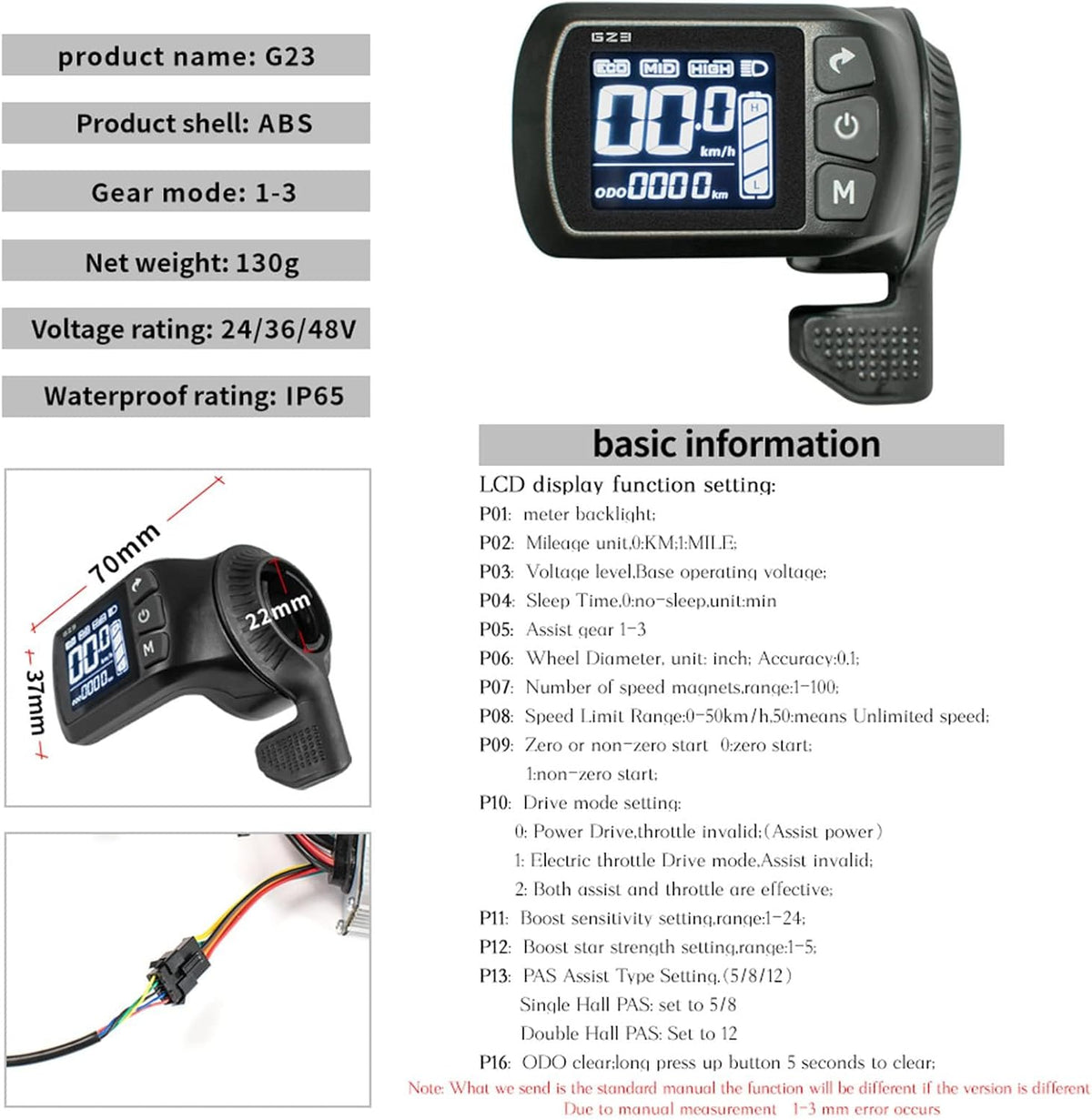

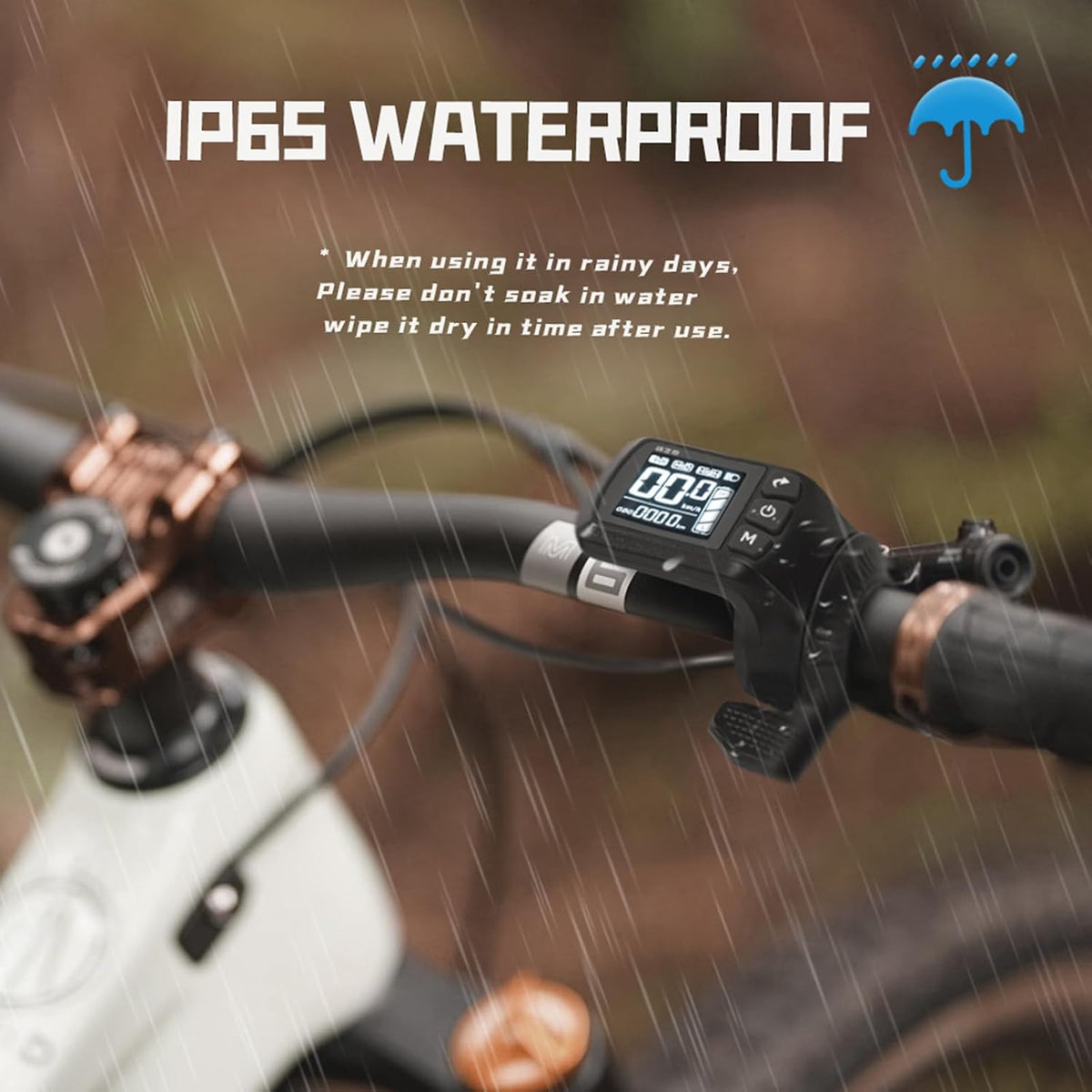

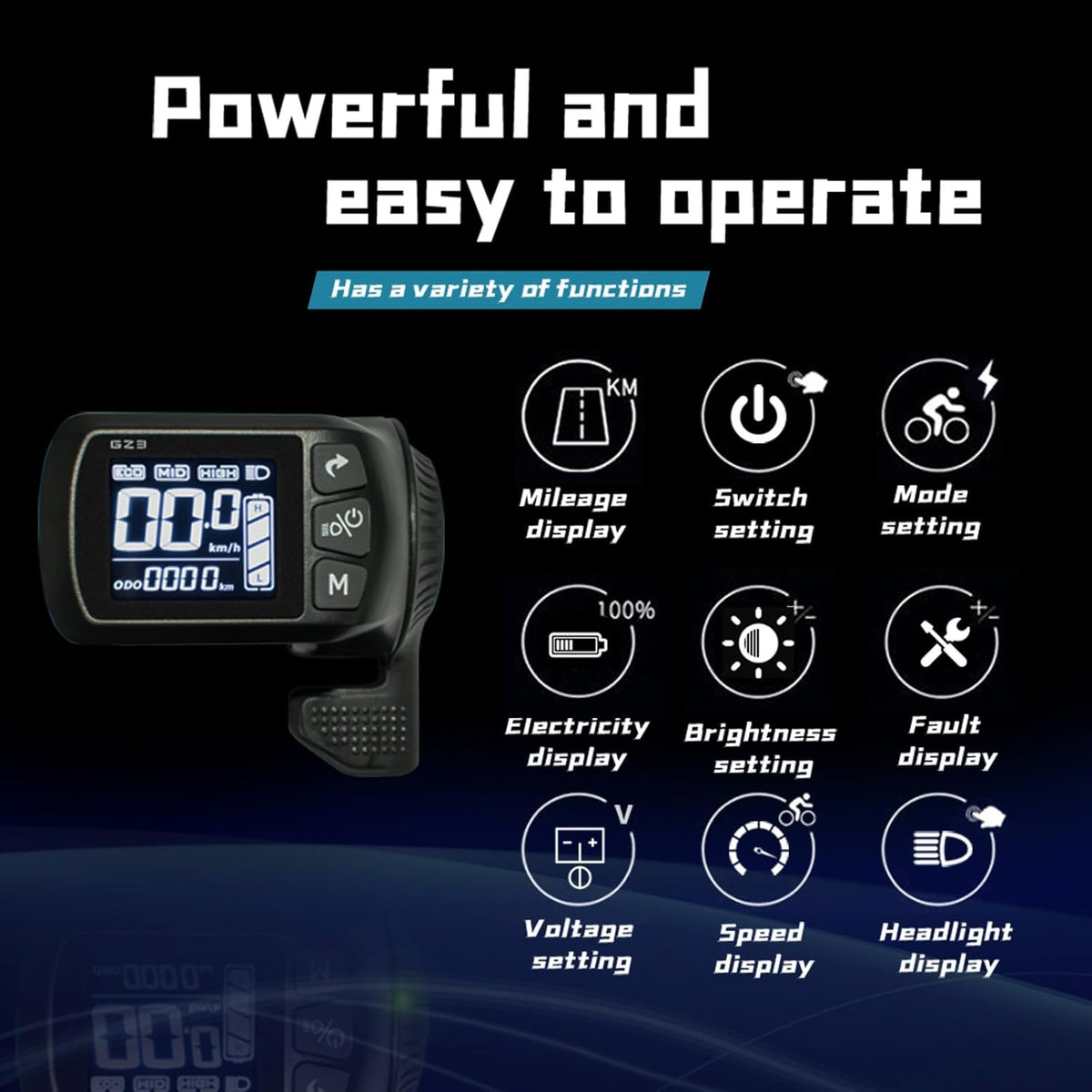

- 【Versatile Functions Ebike LCD Display】This electric bike control panel provide many useful information for us,such as:real time speed,battery power,riding time,total or single mileage,it is adjustable,you can set according to your need,the electric bike LCD display meter is waterproof,hot-resistant,backlight
- 【Electric Bicycle Thumb Throttle】The Electric bicycle accelerator is linked to the ebike LCD screen,the throttle ebike interface is designed with concave small dots,easy to use,smoothly rotate. Using this 36v controller and throttle brushless can increase more comfortable riding experience

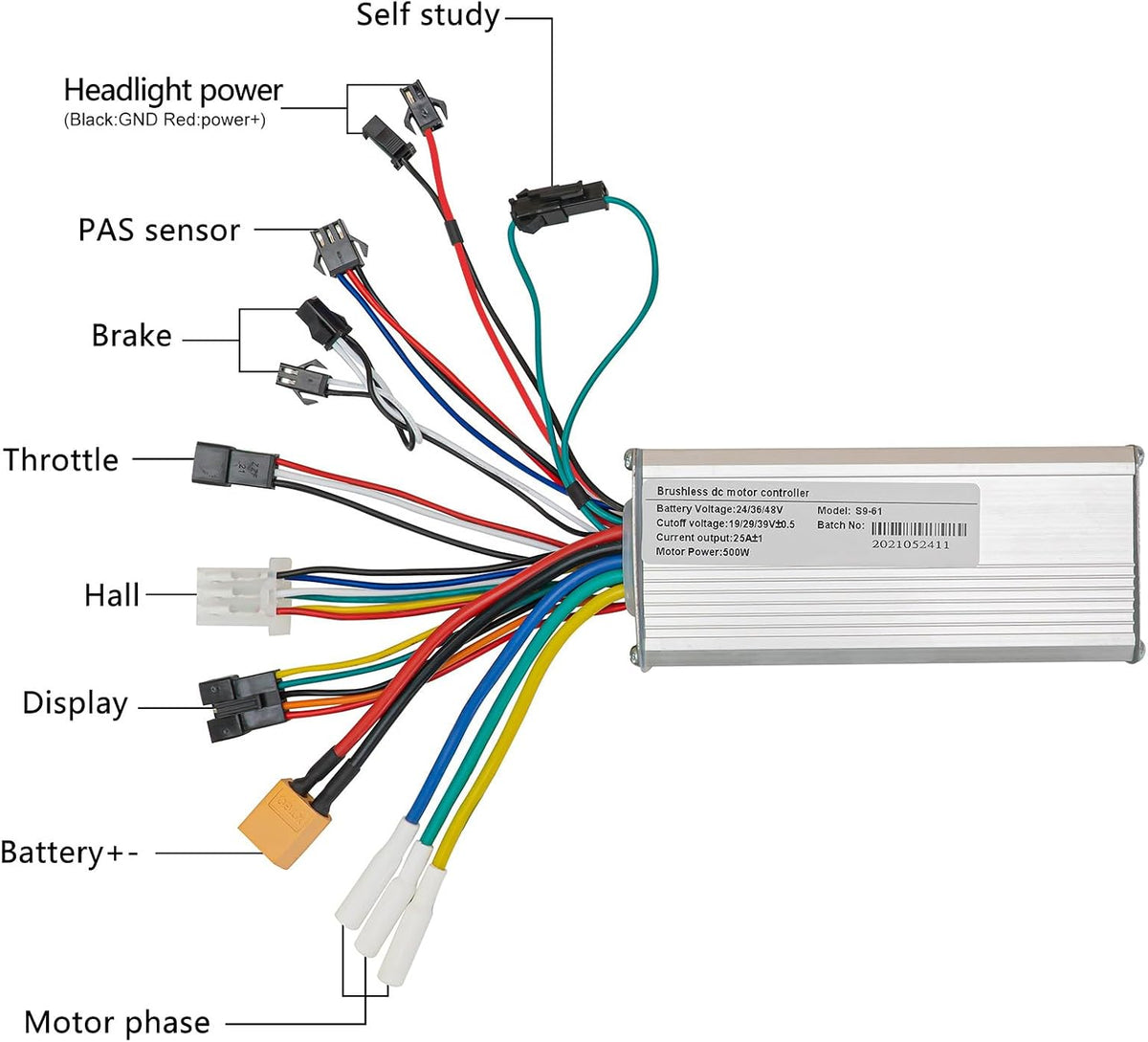

- 【Easy to Install】The interfaces of the 36v controller with lcd throttle have instruction labels which very easy understanding, putting wiring harness on the e bike controller into the socket of the corresponding accessories to realize the functions.the electric scooter LCD display brings bracket,suitable for handlebar with a 22mm/0.8in diameter

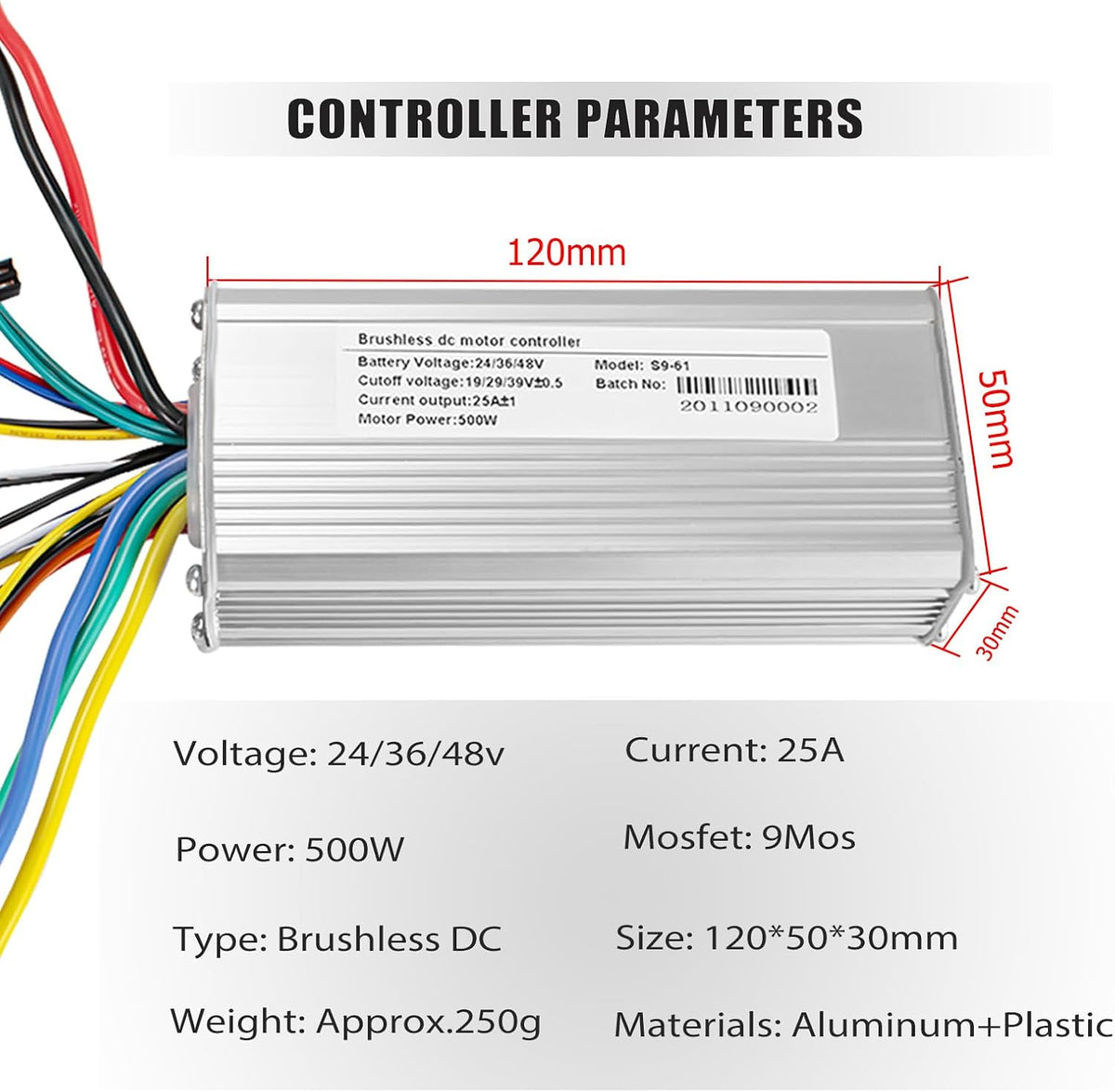

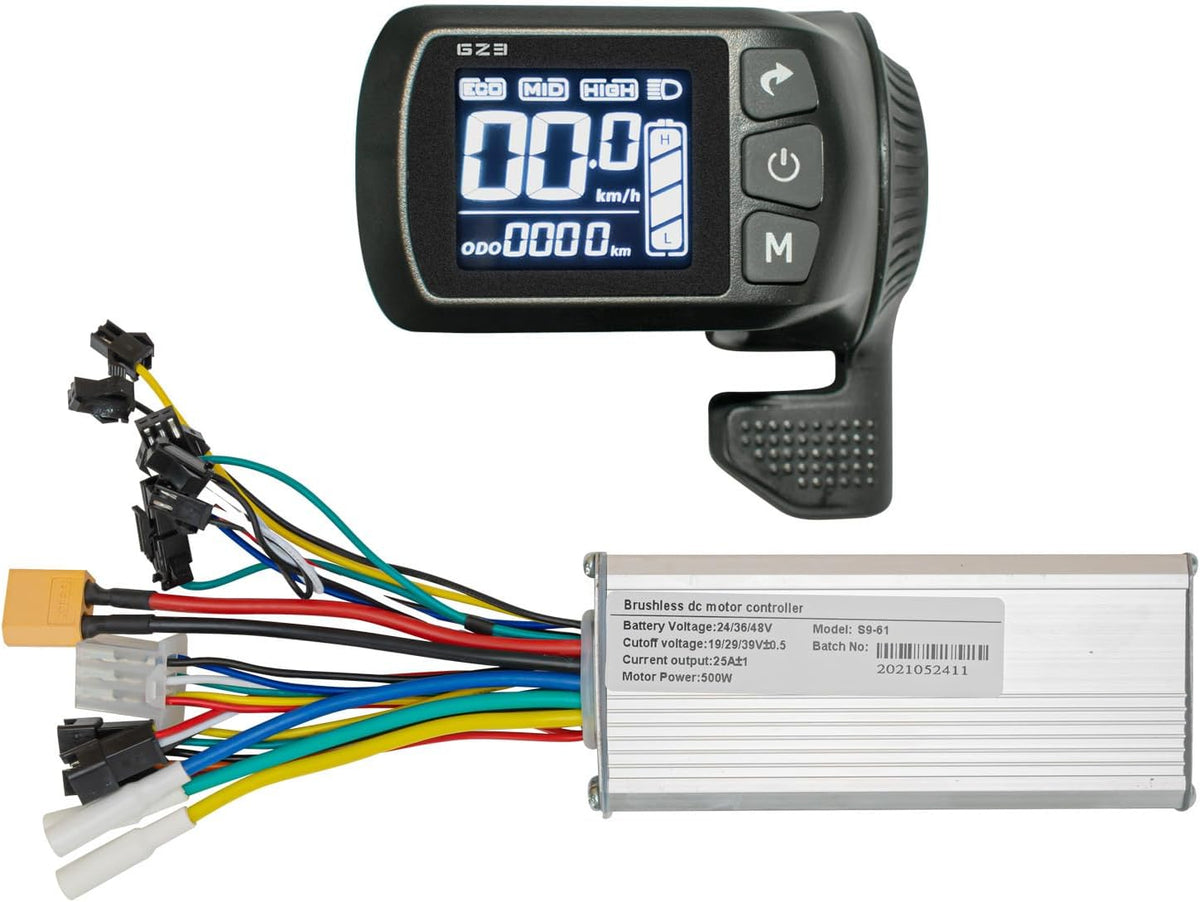

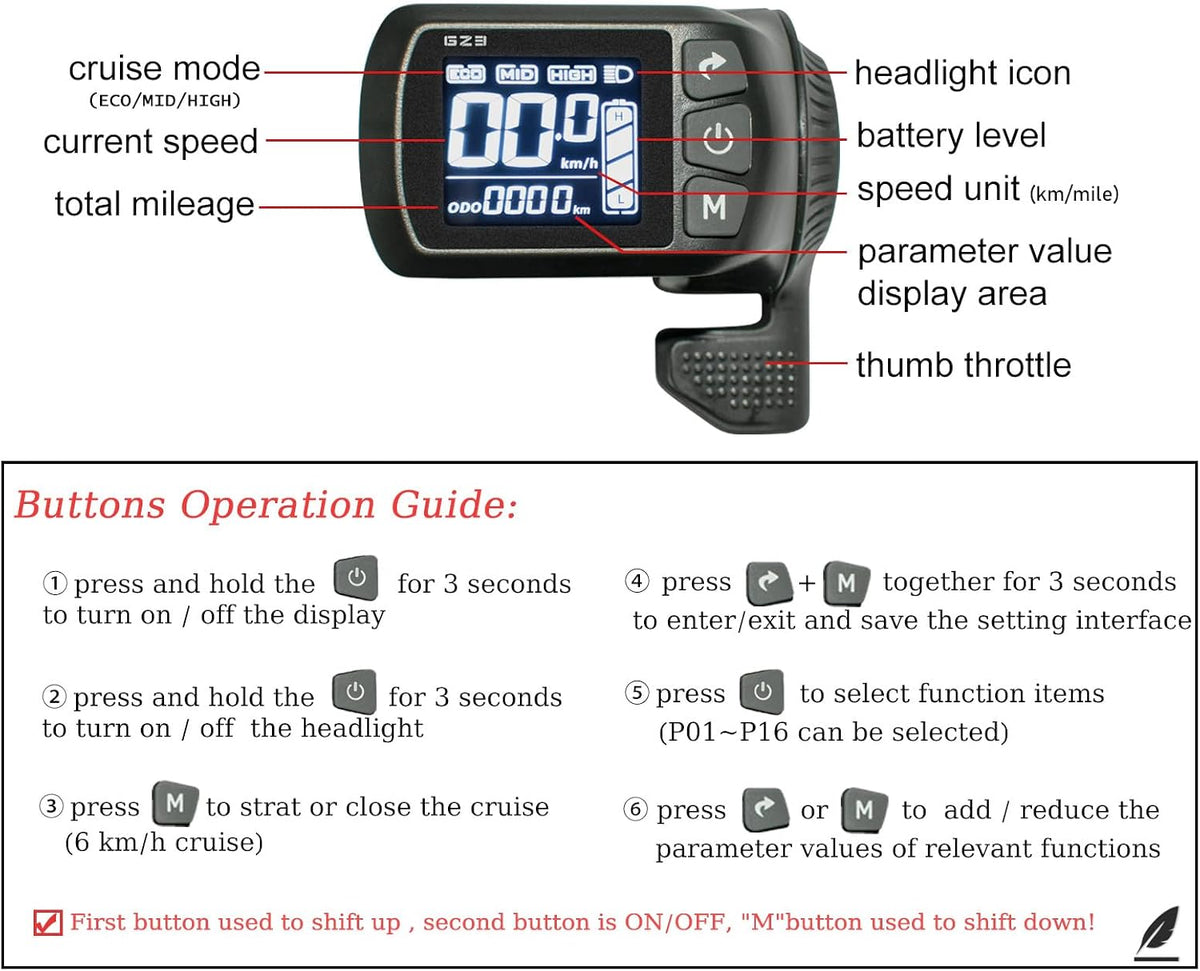

The EBike Controller and Display Features: 1.This electric motor controller set including a ebike brushless dc motor controller and a ebike lcd display screen,the electric bike display panel has GZ3/S866 two models optionally,one link with ebike thumb throttle,another is not. 2.The 25amp 48v bldc controller is suitable for 500w brushless motor,This ebike motor controller can be used in e bike controller upgrade,replace old electric bike hub motor controller,and repairelectric tricycle battery controller. 3.The brushless controller display comes with 22mm/0.8in mounting bracket.This electric bike LCD control panel is very convenient to install on the handlebar. The three buttons on the ebike screen can be used to set many paremeters. The GZ3 display is equipped with thumb throttle,There is no need to install a electric bike accelerator anymore. 4. The electric cycle brushless controller widely used in escooter,e-bike,electric bicycle,electric tricycle.The ebike motor controller compatible with hall sensor motor.The 48v 500w ebike brushless motor controller can also be compatible with a 48v hub motor controller.This brushless speed controller display are good accessories for e bike controller replacement. Package List: 1 x Scooter Controller、1 x LCD Display
Specifications
- Bike Type: Electric Bike
- Age Range (Description): Adult
- Number of Speeds: 1
- Color: 500W-G23 KIT
- Suspension Type: Front
- Included Components: 1×brushless controller 、1×LCD display
- Size: see as picture
- Brake Style: Disc
- Specific Uses For Product: replacement
- Number Of Speeds: 1
- Bicycle Gear Shifter Type: Thumb
- Bicycle Drivetrain Type: Electric Motor
